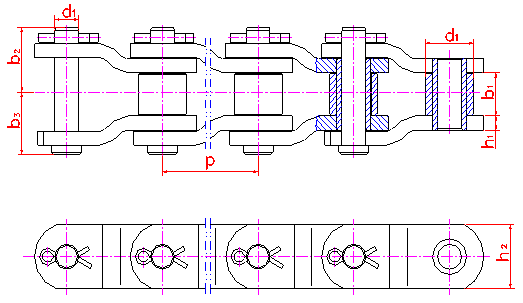

| 鏈號 Chain NO. | 節距 Pitch p mm | 滾子直徑 Roller Diameter d1(max) mm | 窄端內寬 b1(min) mm | b2 mm | b3 mm | 銷軸直徑 Pin diameter d2(max) mm | 鏈板厚度 Plate thickness h1 mm | 鏈板高度 Plate height h2 mm | 拉伸載荷 Tensile load min KN | 每米重量 Weight/m |
| 2010 | 63.50 | 31.75 | 38.10 | 47.80 | 42.90 | 15.90 | 7.92 | 47.80 | 250.00 | 15.00 |
| 2512 | 77.90 | 41.28 | 39.60 | 55.60 | 47.80 | 19.08 | 9.70 | 60.50 | 340.00 | 18.00 |
| 2814 | 88.90 | 44.45 | 38.10 | 62.00 | 55.60 | 22.25 | 12.70 | 60.50 | 470.00 | 25.00 |
| 3315 | 103.45 | 45.24 | 49.30 | 71.40 | 63.50 | 23.85 | 14.20 | 63.50 | 550.00 | 27.00 |
| 3618 | 114.30 | 57.15 | 52.30 | 76.20 | 65.00 | 27.97 | 14.20 | 79.20 | 760.00 | 38.00 |
| 4020 | 127.00 | 63.50 | 69.90 | 90.40 | 77.70 | 31.78 | 15.70 | 91.90 | 990.00 | 52.00 |
| 4824 | 152.40 | 76.20 | 76.20 | 98.60 | 88.90 | 38.13 | 19.00 | 104.60 | 1400.00 | 68.00 |
